Product Summary
The AD7793BRUZ is a low power, complete analog 16/24-bit Sigma-Delta ADC with low-noise in-amp and embedded reference for low frequency measurement applications. The AD7793BRUZ contains a low noise 16/24-bit Σ-Δ ADC with three differential analog inputs. The on-chip low noise instrumentation amplifier means that signals of small amplitude can be interfaced directly to the ADC. With a gain setting of 64, the rms noise is 80 nV when the update rate equals 16.6 Hz. The AD7793BRUZ contains a precision low noise, low drift internal bandgap reference for absolute measurements. An external reference can also be used if ratiometric measurements are required.
Parametrics
AD7793BRUZ absolute maximum ratings: (1)AVDD to GND: –0.3 V to +7 V; (2)DVDD to GND: –0.3 V to +7 V; (3)Analog Input Voltage to GND: –0.3 V to AVDD + 0.3 V; (4)Reference Input Voltage to GND: –0.3 V to AVDD + 0.3 V; (5)Digital Input Voltage to GND: –0.3 V to AVDD + 0.3 V; (6)Digital Output Voltage to GND: –0.3 V to AVDD + 0.3 V; (7)AIN/Digital Input Current: 10 mA; (8)Operating Temperature Range: –40 to +105℃; (9)Storage Temperature Range –65 to +150℃; (10)Maximum Junction Temperature: 150℃; (11)Lead Temperature, Soldering: Vapor Phase (60 sec) 215℃, InfraRed(15 sec ), 220℃.
Features
AD7793BRUZ features: (1)Low Noise Programmable Gain Instrumentation-Amp; (2)RMS noise: 80 nV (Gain = 64); (3)Bandgap Reference with 5ppm/ C Drift typ; (4)Power Supply: 2.7 V to 5.25 V operation, Normal: 400 μA typ; (5)Power-down: 1 μA max; (6)Update Rate: 4 Hz to 500 Hz; (7)Simultaneous 50 Hz/60 Hz Rejection; (8)Internal Clock Oscillator; (9)Programmable Current Sources (10 μA/200 μA/1 mA); (10)On-Chip Bias Voltage Generator; (11)100 nA Burnout Currents; (12)Independent Interface Power Supply; (13)16-Lead TSSOP Package.

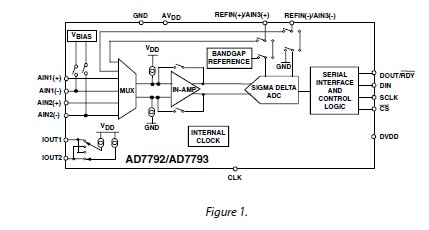

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AD7793BRUZ |
|
IC ADC 24BIT SIG-DEL 3CH 16TSSOP |
Data Sheet |
|
|
||||||||||||||||
|
AD7793BRUZ-REEL |
|
IC ADC 24BIT 3CH LP 16-TSSOP |
Data Sheet |
|
|
||||||||||||||||
