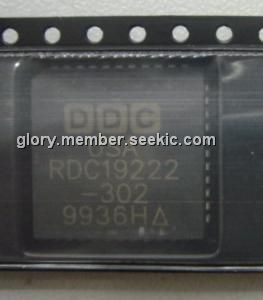

RDC19222-302

Product Summary

The RDC19222-302 is a 16 bit monolithic tracking resolver to digital converter. The converter offers low cost off-the-shelf solutions for todays motion feedback applications. Class K and Mil-PRF-38534 processing options are also available. This single chip converter RDC19222-302 features programmable resolution of 10, 12, 14 or 16 bits with accuracies to 1.3 min. This converter RDC19222-302 can be configured for operation with a single +5VDC power supply. Programmable bandwidth and a velocity output used to replace tachometers can be scaled to your application needs. The velocity scale factor / tracking rate is programmed with a single resistor. The optional internal synthesized reference feature will eliminate errors due to quadrature voltage and ensure operation with a rotor-to-stator phase shift of up to 45 degrees. The RDC19222-302 offers versatile performance at low cost for use in industrial control systems. Standard selections for Class K and MIL-PRF processing reduce lead time costs and no NRE or lot charges are necessary.

Parametrics

RDC19222-302 specifications: (1)Differential Voltage: ± 10 v max; (2)single ended: ± 5 v max; (3)overload: ± 25 v continuous 100 transient; (4)Frequency: DC to 40 kHz; (5)Input Impedance: 10M Ohm min //20 pf; (6)±Sig/Ref Phase Shift: 6 deg max; (7)SIGNAL INPUT (+S, -S, SIN, +C, -C, COS): operating: 2 ± 15%Vrms; overload: ± 25 v continuous; Input Impedance: 10M Ohm min //10 pf; (8)Nominal Voltage: ±5v; (9)Voltage Range: ±5%; (10)Max Volt. w/o: ±7v; (11)Damage Current: 14 mA typ, 22 max mA(each).

Features

RDC19222-302 features: (1)Accuracy to 1.3 Arc Minutes; (2)Internal Synthesized Reference Option (S Version): Up to 45 Degree Phase Shift Correction; (3)+5 Volt Only Option; (4)Programmable: Resolution 10, 12, 14 or 16 bit; Bandwidth to 1200 Hz; Tracking to 2300 RPS; (5)Standard Class K and MIL-PRF Selections Available; (6)-55° to +125℃ Operation Temperature Option; (7)16.5mm2 J Lead and DDIP Packages Available.

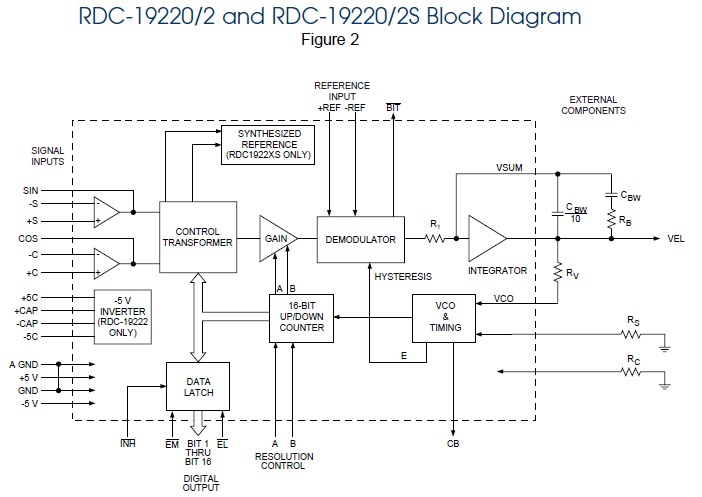

Diagrams
