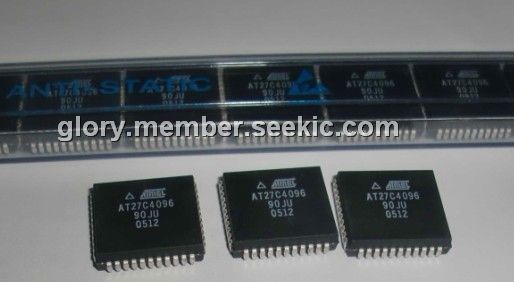

AT27C4096-90JU

PLCC, low-power, high-performance, 4,194,304-bit ,one-time, programmable, read only memory, 55 ns

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~1.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~1.50

PartNumber:: AT27C4096-90JU

Brand:: ATMEL Corporation - ATMEL | Pack: PLCC | D/C: 05+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Andy Wu's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-11-03

From Other Seller

Part Number:AT27C4096-90JU
US $1.00 - 1.50
A50L-0001-0175

US $100.00 - 100.00 / Piece
(0) Remove
HCPL-7800A

US $2.50 - 4.10 / Piece
(0) Remove
Quantity:

piece

Product Summary

The AT27C4096-90JU is a low-power, high-performance 4,194,304-bit one-time programmable read only memory (OTP EPROM) organized 256K by 16 bits. The AT27C4096-90JU requires a single 5V power supply in normal read mode operation. Any word can be accessed in less than 55 ns, eliminating the need for speed-reducing WAIT states. The by-16 organization makes this part ideal for high-performance 16- and 32-bit microprocessor systems.

Parametrics

AT27C4096-90JU absolute maximum ratings: (1)Temperature Under Bias: -55 to +125℃; (2)Storage Temperature: -65 to +150℃; (3)Voltage on Any Pin with Respect to Ground: -2.0V to +7.0V(1); (4)Voltage on A9 with Respect to Ground: -2.0V to +14.0V(1); (5)VPP Supply Voltage with Respect to Ground: -2.0V to +14.0V(1).

Features

AT27C4096-90JU features: (1)Fast Read Access Time - 55 ns; (2) Low Power CMOS Operation: 100 μA Maximum Standby; 40 mA Maximum Active at 5 MHz; (3)JEDEC Standard Packages: 40-Lead 600 mil PDIP; 44-Lead PLCC; 40-Lead TSOP (10 mm x 14 mm); (4)Direct Upgrade from 512K bit, 1M bit, and 2M bit (AT27C516, AT27C1024, and AT27C2048) EPROMs; (5)5V ± 10% Power Supply; (6)High Reliability CMOS Technology: 2,000V ESD Protection; 200 mA Latchup Immunity; (7)Rapid Programming Algorithm: 50 μs/word (typical); (8)CMOS and TTL Compatible Inputs and Outputs; (9)Integrated Product Identification Code; (10)Commercial and Industrial Temperature Ranges.
