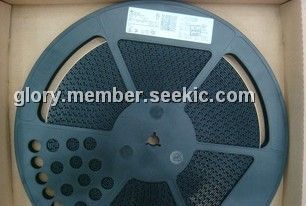

OPA2336U

microPower CMOS operational amplifier, SOP-8, single-supply, 7.5V, rail-to-rail output

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.85~0.95 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.85~0.95

PartNumber:: OPA2336U

Brand:: Texas Instruments - TI | Pack: SOP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Andy Wu's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-11-03

From Other Seller

Part Number:OPA2336U
US $0.85 - 0.95
iphone5 data cable

US $4.00 - 5.00 / Piece
(0) Remove
FM31256-G

US $2.40 - 4.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

The OPA2336U microPower CMOS operational amplifier is designed for battery-powered applications. It operates on a single supply with operation as low as 2.1V. The output of the OPA2336U is rail-to-rail and swings to within 3mV of the supplies with a 100kΩ load. The common-mode range extends to the negative supply-ideal for single-supply applications. Single, dual, and quad versions have identical specifications for maximum design flexibility. In addition to small size and low quiescent current (20μA/amplifier), the OPA2336U features low offset voltage (125μV max), low input bias current (1pA), and high openloop gain (115dB).

Parametrics

OPA2336U absolute maximum ratings: (1)Supply Voltage: 7.5V; (2)Signal Input Terminals, Voltage: (V–) –0.3V to (V+) +0.3V; Current: 10mA; (3)Output Short-Circuit: Continuous; (4)Operating Temperature: –55℃ to +125℃; (5)Storage Temperature: –55℃ to +125℃; (6)Junction Temperature: 150℃; (7)Lead Temperature (soldering, 10s): 300℃; (8)ESD Rating: Charged Device Model, OPA336 NJ and UJ only (CDM): 1000V; Human Body Model (HBM): 500V;Machine Model (MM): 100V.

Features

OPA2336U features: (1)single-supply operation; (2)rail-to-rail output (within 3mv); (3)micropower: iq = 20μa/amplifier; (4)microsize packages; (5)low offset voltage: 125μv max; (6)specified from vs = 2.3v to 5.5v; (7)single, dual, and quad versions.
