Product Summary

The XC5VLX155T-1FFG1136C is an FPGA. It provides the newest most powerful features in the FPGA market. Using the second generation ASMBL (Advanced Silicon Modular Block) column-based architecture, the XC5VLX155T-1FFG1136C contains five distinct platforms (sub-families), the most choice offered by any FPGA family. The XC5VLX155T-1FFG1136C offers the best solution for addressing the needs of high-performance logic designers, high-performance DSP designers, and high-performance embedded systems designers with unprecedented logic, DSP, hard/soft microprocessor, and connectivity capabilities.

Parametrics

XC5VLX155T-1FFG1136C absolute maximum ratings: (1)Internal supply voltage relative to GND: –0.5 to 1.1 V; (2)Auxiliary supply voltage relative to GND: –0.5 to 3.0 V; (3)Output drivers supply voltage relative to GND: –0.5 to 3.75 V; (4)Key memory battery backup supply: –0.5 to 4.05 V; (5)Input reference voltage: –0.5 to 3.75 V; (6)3.3V I/O input voltage relative to GND(4) (user and dedicated I/Os): –0.75 to 4.05 V; (7)2.5V or below I/O input voltage relative to GND (user and dedicated I/Os): –0.75 to VCCO + 0.5 V; (8)Current applied to an I/O pin, powered or unpowered: ±100 mA; (9)Total current applied to all I/O pins, powered or unpowered: ±100 mA; (10)Voltage applied to 3-state 3.3V output: –0.75 to 4.05 V; (11)Voltage applied to 3-state 2.5V or below output: –0.75 to VCCO + 0.5 V; (12)Storage temperature (ambient): –65 to 150℃; (13)Maximum soldering temperature: +220℃; (14)Maximum junction temperature(2): +125℃.

Features

XC5VLX155T-1FFG1136C features: (1)Real 6-input look-up table (LUT) technology; (2)Dual 5-LUT option; (3)Improved reduced-hop routing; (4)64-bit distributed RAM option; (5)SRL32/Dual SRL16 option; (6)Digital Clock Manager (DCM) blocks for zero delay buffering, frequency synthesis, and clock phase shifting; (7)PLL blocks for input jitter filtering, zero delay buffering, frequency synthesis, and phase-matched clock division; (8)1.2 to 3.3V I/O Operation; (9)Source-synchronous interfacing using ChipSync technology; (10)Digitally-controlled impedance (DCI) active termination; (11)Flexible fine-grained I/O banking; (12)High-speed memory interface support; (13)Optional adder, subtracter, and accumulator; (14)Optional pipelining; (15)Optional bitwise logical functionality; (16)Dedicated cascade connections; (17)SPI and Parallel FLASH interface; (18)Multi-bitstream support with dedicated fallback reconfiguration logic; (19)Auto bus width detection capability; (20)On-chip/Off-chip thermal monitoring; (21)On-chip/Off-chip power supply monitoring; (22)JTAG access to all monitored quantities; (23)65-nm copper CMOS process technology; (24)1.0V core voltage; (25)High signal-integrity flip-chip packaging available in standard or Pb-free package options.

Diagrams

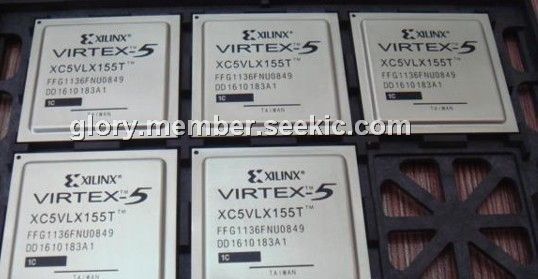

XC5VLX155T-1FFG1136C diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
XC5VLX155T-1FFG1136C
XC5VLX155T-1FFG1136C


IC FPGA VIRTEX-5LX 155K 1136FBGA

Data Sheet

0-1: $1,705.33
