Product Summary

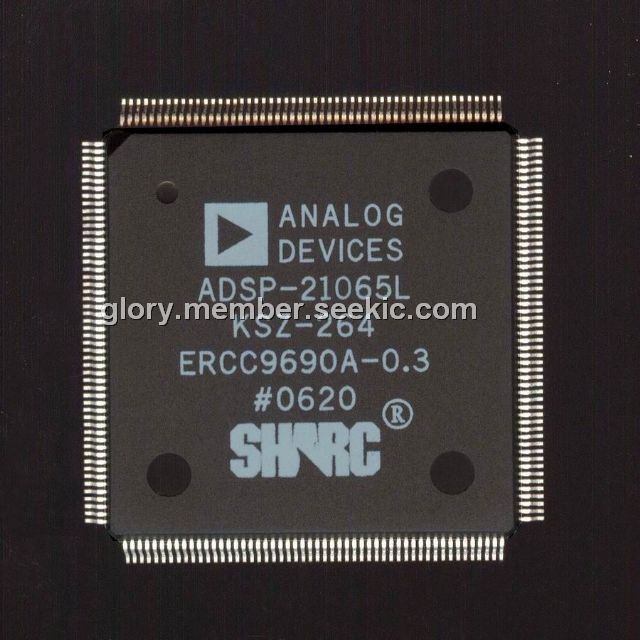

The ADSP21065LKSZ-264 is a powerful member of the SHARC family of 32-bit processors optimized for cost sensitive appli-cations. The SHARC—Super Harvard Architecture—offers the highest levels of performance and memory integration of any 32-bit DSP in the industry—they are also the only DSP in the industry that offer both fixed and floating-point capabilities, without compromising precision or performance. The ADSP21065LKSZ-264 is fabricated in a high speed, low powerCMOS process, 0.35 μm technology.
Parametrics
ADSP21065LKSZ-264 absolute maximum ratings: (1)Supply Voltage: –0.3 V to +4.6 V; (2)Input Voltage: –0.5 V to VDD + 0.5 V; (3)Output Voltage Swing: –0.5 V to VDD + 0.5 V; (4)Load Capacitance: 200 pF; (5)Junction Temperature Under Bias: 130℃; (6)Storage Temperature Range: –65 to +150℃; (7)Lead Temperature (5 seconds): 280℃.
Features
ADSP21065LKSZ-264 features: (1)66 MIPS, 198 MFLOPS Peak, 132 MFLOPS Sustained Performance; (2)User-Configurable 544 Kbits On-Chip SRAM Memory; (3)Two External Port, DMA Channels and Eight Serial Port, DMA Channels; (4)64M Words External Address Range; (5)12 Programmable I/O Pins and Two Timers with Event Capture Options; (6)Code-Compatible with ADSP-2106x Family; (7)208-Lead MQFP or 196-Ball Mini-BGA Package; (8)3.3 Volt Operation; (9)Flexible Data Formats and 40-Bit Extended Precision.

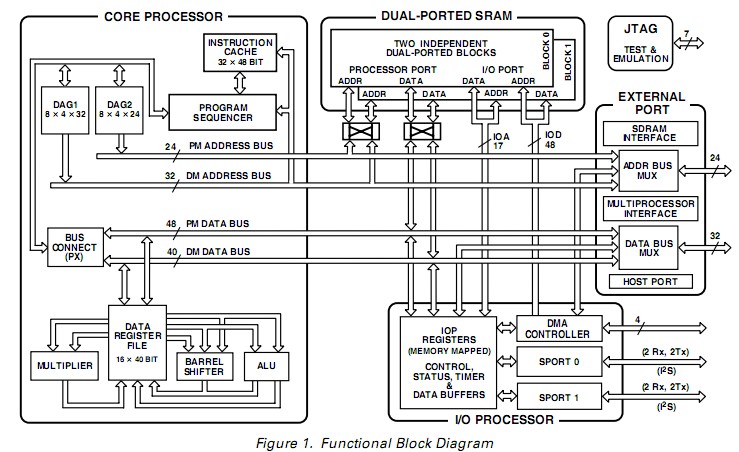

Diagrams
 |
