Product Summary

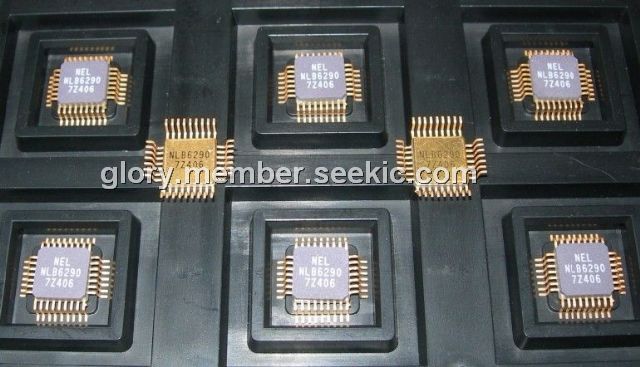

The NLB6290 is an ultra high speed monolithic dual ECL to SCFL level convertor.
Parametrics
NLB6290 absolute maximum ratings: (1)Output High voltage: -0.2V; (2)Output Low voltage: -0.9 to -0.75V; (3)Power supply current: 80 to 190mA.
Features
NLB6290 features: (1)Typical AC characteristics; (2)Internal pull down resisters on input pins to maintain logic LOW level with the pins left open; (3)Internal pull up resisters on input pins to maintain logic high level with the pins left open; (4)differential ECL 100k compatible input; (5)Differential sCFL compatible outputs.
Diagrams
