Product Summary

The BTS452R is a N channel vertical power MOSFET with charge pump, ground referenced CMOS compatible input, diagnostic feedback and proportional load current sense monolithically integrated in Smart SIPMOS technology. It Provides embedded protective functions.

Parametrics

BTS452R absolute maximum ratings: (1)Supply voltage Vbb: 52 V; (2)Supply voltage for full short circuit protection Vbb(SC): 50V; (3)Continuous input voltage VIN: -10 to +16V; (4)Load current (Short - circuit current, see page 5) IL self limited; (5)Current through input pin (DC) IIN: ± 5 mA; (6)Operating temperature Tj: -40 to +150 ℃; (7)Storage temperature Tstg -55 to +150 ℃; (8)Power dissipation Ptot: 41.6 W; (9)Inductive load switch-off energy dissipation EAS: 150 mJ.

Features

BTS452R features: (1)Overload protection; (2)Current limitation; (3)Short circuit protection; (4)Thermal shutdown with restart; (5)Overvoltage protection (including load dump); (6)Fast demagnetization of inductive loads; (7)Reverse battery protection with external resistor; (8)Open drain diagnostic output for overtemperature and short circuit; (9)Open load detection in OFF - State with external resistor; (10)CMOS compatible input; (11)Loss of GND and loss of Vbb protection; (12)ESD - Protection; (13)Very low standby current.

Diagrams

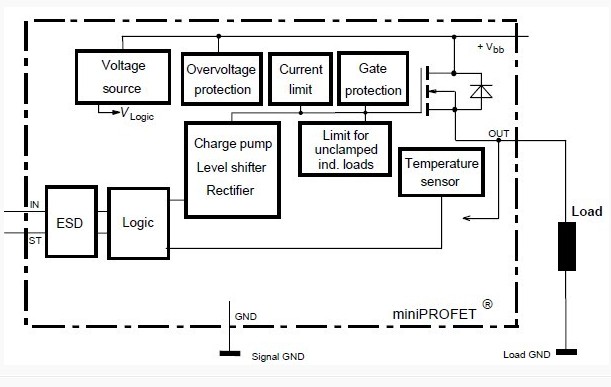

BTS452R block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
BTS452R
BTS452R
Infineon Technologies
Power Switch ICs - Power Distribution Smart High Side MINI-PROFET
Data Sheet
0-1: $1.34
1-10: $1.15
10-100: $0.94
100-500: $0.73
BTS452R 75
BTS452R 75
Infineon Technologies
Power Switch ICs - Power Distribution Smart High Side MINI-PROFET
Data Sheet
Negotiable
