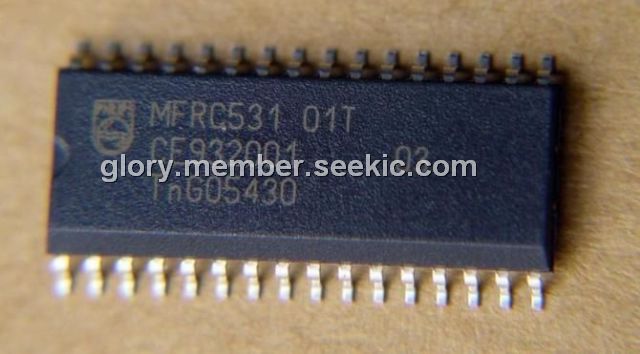

MFRC53101T

Product Summary

The MFRC53101T is member of a new family of highly integrated reader ICs for contactless communication at 13.56 MHz. This reader IC family utilises an outstanding modulation and demodulation concept completely integrated for all kinds of passive contactless communication methods and protocols at 13.56 MHz. The MFRC53101T is pin- compatible to the MF RC500, the MF RC530 and the SL RC400. The MFRC53101T supports all layers of the ISO14443 including the type A and type B communication scheme The MFRC53101T supports contactless communication using MIFARE Higher Baudrates. The internal transmitter part is able to drive an antenna designed for proximity operating distance (up to 100 mm) directly without additional active circuitry. The receiver part provides a robust and efficient implementation of a demodulation and decoding circuitry for signals from ISO14443 compatible transponders. The digital part handles the complete ISO14443 framing and error detection (Parity & CRC). Additionally it supports the fast MIFARE Classic security algorithm to authenticate MIFARE Classic (e.g. MIFARE Standard, MIFARE Light) products. A comfortable parallel interface, which can be mdirectly connected to any 8-bit μ-Processor gives high flexibility for the reader/terminal design. Additionally a SPI compatible interface is supported.

Parametrics

MFRC53101T absolute maximum ratings:(1)Digital Supply Voltage, DVDD: from 3.0V to 3.6V, the typ is 3.3V; (2)Analog Supply Voltage, AVDD: from 4.5V to 5.5V, the typ is 5.0V; (3)Transmitter Supply Voltage, TVDD: from 3.3V to 5.5V, the typ is 5.0V; (4)Operating Digital Supply Current Idle Command, IDVDD: 6mA; (5)Operating Analog Supply Current, Idle Command, Receiver On, IAVDD: 25mA; (6)Operating Buffered Antenna Driver Supply Current, continuous wave, ITVDD: 50mA.

Features

MFRC53101T features:(1)Highly integrated analog circuitry to demodulate and decode card response; (2)Buffered output drivers to connect an antenna with minimum number of external components; (3)Proximity operating distance (up to 100 mm); (4)Supports ISO 14443; (5)Supports MIFARE Dual Interface Card ICs and supports MIFARE Classic protocol; (6)Supports contactless communication with higher baudrates up to 424kHz; (7)Crypto1 and secure non-volatile internal key memory; (8)Pin-compatible to the MF RC500, MF RC530 and the SL RC400; (9)Parallel μ-Processor interface with internal address latch and IRQ line; (10)SPI compatible interface; (11)Flexible interrupt handling; (12)Automatic detection of the used μ-Processor interface type; (13)Comfortable 64 byte send and receive FIFObuffer; (14)Hard reset with low power function; (15)Power down mode per software; (16)Programmable timer; (17)Unique serial number; (18)Bit- and byte-oriented framing; (19)Internal oscillator buffer to connect 13.56 MHz quartz, optimised for low phase jitter; (20)3.3 V to 5 V operation for transmitter (antenna driver) in short range and proximity applications; (21)3.3 V or 5V operation for the digital part.

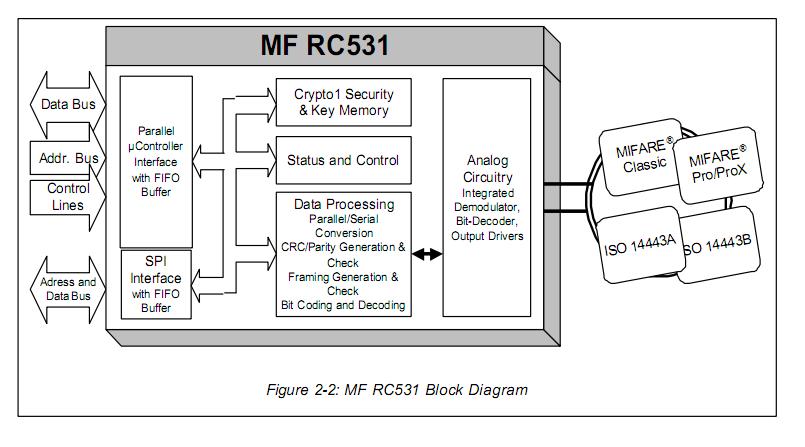

Diagrams
