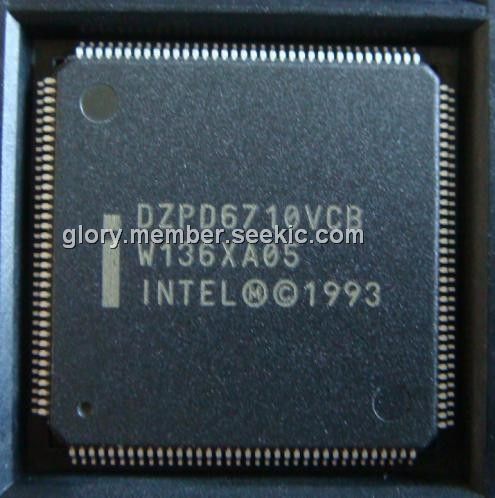

DZPD6710VCB

Product Summary

The DZPD6710VCB is a single-chip PC Card (PCMCIA) controller solution capable of controlling one PC Card sockets. The chip is compliant with PC Card Standard, PCMCIA 2.1, and JEIDA 4.1 and is optimized for use in embedded applications and notebook/handheld/mobile computer systems where reduced form factor and low power consumption are critical design objectives. With the DZPD6710VCB, a complete PC Card solution with power-control logic can occupy less than 1.5 square inches (excluding the socket connector). The chip employs energy-efficient mixed-voltage technology that can reduce system power consumption by over 50 percent. The chip DZPD6710VCB also provides: a Low-Power Dynamic mode, which automatically stops the internal clock during periods of card inactivity; a software-controlled Suspend mode, which dramatically reduces power by disabling most of the internal circuitry and stopping data transactions to the PC Cards; and a hardware-controlled Super Suspend mode, which reduces current to the μA range.

Parametrics

DZPD6710VCB absolute maximum ratings: (1)Ambient temperature under bias: 0℃ to 70℃; (2)Storage temperature: -65℃ to 150℃; (3)Voltage on any pin (with respect to ground): -0.5 volts to 0.5 volts greater than voltage of +5V pin, respective to ground; (4)Operating power dissipation: 500 mW; (5)Suspend power dissipation: 10 mW; (6)Power supply voltage: 7 volts; (7)Injection current (latch up): 25 mA.

Features

DZPD6710VCB features: (1)Single-chip PC Card (PCMCIA) controllers; (2)Direct connection to ISA (PC AT) bus and one or two PC Card sockets; (3)Compliant with PC Card Standard, PCMCIA 2.1, and JEIDA 4.1; (4)82365SL-compatible register set, ExCA-compatible; (5)Automatic Low-Power Dynamic mode for lowest active power consumption; (6)Programmable Suspend mode; (7)Hardware-enabled Super Suspend mode; (8)Five programmable memory windows per socket and two programmable I/O windows per socket; (9)Programmable card access cycle timing; (10)8- or 16-bit system bus interface; (11)8- and 16-bit PC Card interface support; (12)PCMCIA-ATA and ture-IDE disk interface support; (13)DMA support (PD6722); (14)Card-voltage sense support; (15)PC Card activity indicator; (16)Mixed-voltage operation (3.3/5.0 V); (17)Single-socket interface: 144-pin LQFP for smallest form factor (PD6710); (18)Dual-socket interface: 208-pin MQFP or LQFP (PD6722).

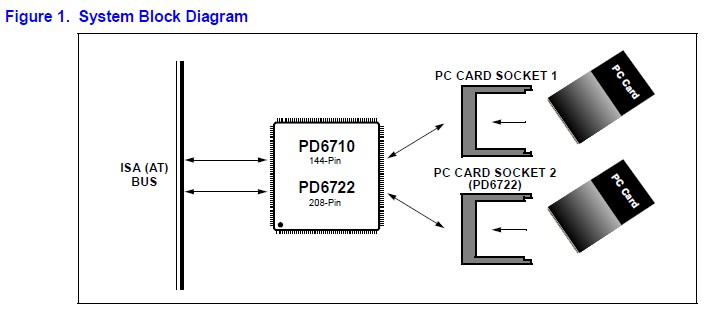

Diagrams
