Product Summary

The CA0612 capacitor consists of a rectangular block of ceramic dielectric in which a number of interleaved metal electrodes are contained. This structure of the CA0612 gives rise to a high capacitance per unit volume. The inner electrodes are connected to the two end terminations and finally covered with a layer of plated tin (NiSn). All part numbers are identified by the series, size, tolerance, TC material, packing style, voltage, process code, termination and capacitance value.

Parametrics

CA0612 absolute maximum ratings:(1)size – inch based (metric): 0508 (1220); (2)tolerance: J = ±5%; (3)packing style: R = paper taping reel; reel 7 inch; (4)TC material: NPO; (5)rated voltage: 50V; (6)process: X7R/Y5V.

Features

CA0612 features: (1)Supplied in tape on reel; (2)Nickel-barrier end termination; (3)0508 (4x0402) / 0612 (4x0603) capacitors (of the same capacitance value) per array; (4)Less than 50% board space of an equivalent discrete component; (5)High volumetric efficiency; (6)Increased throughout, by time saved in mounting; (7)RoHS compliant; (8)Halogen Free compliant.

Diagrams

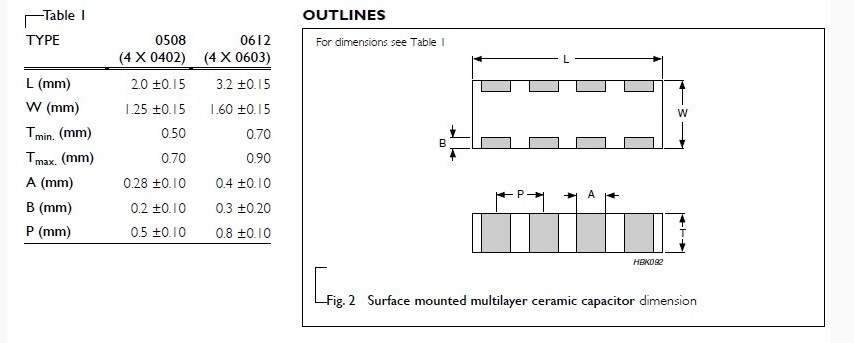

CA0612 outline diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
CA0612JRNPO9BN100
CA0612JRNPO9BN100

Yageo

Capacitor Arrays & Networks 10pF 50V NPO 5%

Data Sheet

0-4000: $0.13
4000-20000: $0.13
20000-40000: $0.12
40000-60000: $0.11
CA0612JRNPO9BN221
CA0612JRNPO9BN221

Yageo

Capacitor Arrays & Networks 220pF 50V NPO 5%

Data Sheet

0-4000: $0.07
4000-20000: $0.07
20000-40000: $0.06
40000-60000: $0.06
CA0612JRNPO9BN331
CA0612JRNPO9BN331

Yageo

Capacitor Arrays & Networks 330pF 50V NPO 5%

Data Sheet

0-4000: $0.05
4000-20000: $0.05
20000-40000: $0.05
40000-60000: $0.05
CA0612JRNPO9BN470
CA0612JRNPO9BN470

Yageo

Capacitor Arrays & Networks 47pF 50V NPO 5%

Data Sheet

0-1: $0.12
1-50: $0.09
50-100: $0.08
100-500: $0.08
CA0612KRNPO9BN680
CA0612KRNPO9BN680

Yageo

Capacitor Arrays & Networks 68pF 50V NPO 10%

Data Sheet

0-4000: $0.02
4000-20000: $0.02
20000-40000: $0.02
40000-60000: $0.02
CA0612KRNPO9BN331
CA0612KRNPO9BN331

Yageo

Capacitor Arrays & Networks 330pF 50V NPO 10%

Data Sheet

0-4000: $0.05
4000-20000: $0.05
20000-40000: $0.05
40000-60000: $0.05
CA0612KRX7R7BB104
CA0612KRX7R7BB104

Yageo

Capacitor Arrays & Networks 100nF 16V X7R 10%

Data Sheet

0-4000: $0.05
4000-20000: $0.05
20000-28000: $0.05
28000-52000: $0.04
CA0612KRNPO9BN101
CA0612KRNPO9BN101

Yageo

Capacitor Arrays & Networks 100pF 50V NPO 10%

Data Sheet

0-4000: $0.03
4000-20000: $0.03
20000-40000: $0.03
40000-60000: $0.03
