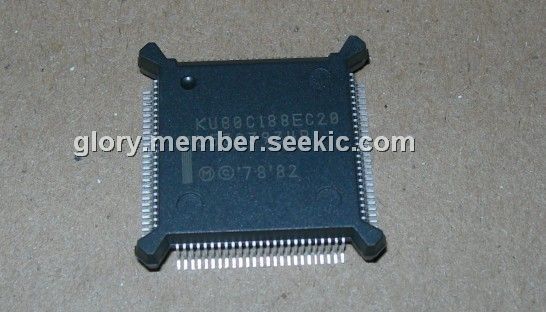

Product Summary

The KU80C188EC20 is a member of the 186 Integrated Processor Family. The 186 Integrated Processor Family incorporates several different VLSI devices all of which share a common CPU architecture: the 8086/8088. The KU80C188EC20 uses the latest high density CHMOS technology to integrate several of the most common system peripherals with an enhanced 8086 CPU core to create a powerful system on a single monolithic silicon die.

Parametrics

KU80C188EC20 absolute maximum ratings: (1)Storage Temperature: -65℃ to +150℃; (2)Case Temperature Under Bias: -65℃ to +100℃; (3)Supply Voltage with Respect to VSS: -0.5V to +6.5V; (4)Voltage on Other Pins with Respect to VSS: -0.5V to VCC + 0.5V.

Features

KU80C188EC20 features: (1)Integrated Feature Set: low-Power, Static, Enhanced 8086 CPU Core; two Independent DMA Supported UARTs, each with an Integral Baud Rate Generator; four Independent DMA Channels; 22 Multiplexed I/O Port Pins; Two 8259A Compatible Programmable Interrupt Controllers; Three Programmable 16-Bit Timer/Counters; 32-Bit Watchdog Timer; Ten Programmable Chip Selects with Integral Wait-State Generator; Memory Refresh Control Unit; Power Management Unit; On-Chip Oscillator; System Level Testing Support(ONCE Mode); (2)Direct Addressing Capability to 1 Mbyte Memory and 64 Kbyte I/O; (3)Low-Power Operating Modes: Idle Mode Freezes CPU Clocks but Keeps Peripherals Active; Powerdown Mode Freezes All Internal Clocks; Powersave Mode Divides All Clocks by Programmable Prescalar; (4)Available in Extended Temperature Range (-40℃ to +85℃); (5)Supports 80C187 Numerics Processor Extension (80C186EC only); (6)Package Types: 100-Pin EIAJ Quad Flat Pack (QFP); 100-Pin Plastic Quad Flat Pack (PQFP); 100-Pin Shrink Quad Flat Pack(SQFP); (7)Speed Versions Available (5V): 20 MHz.

Diagrams

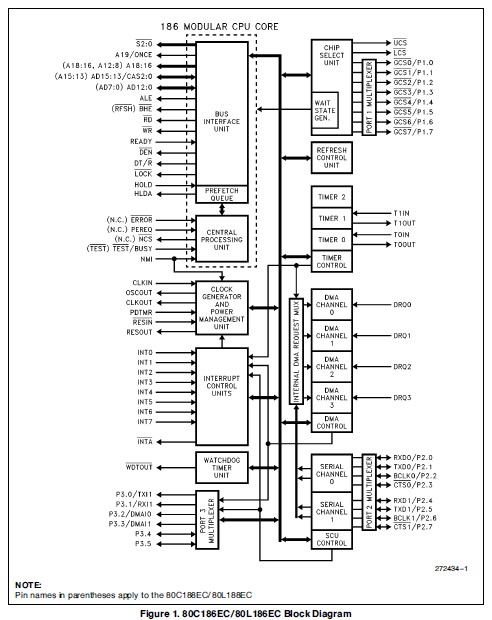

KU80C188EC20 Block Diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
KU80C188EC20
KU80C188EC20

IC MPU 16-BIT 5V 20MHZ 100-QFP
Data Sheet
Negotiable
