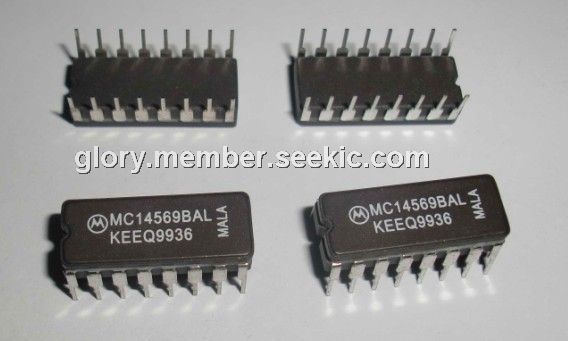

Product Summary
The MC14569BAL is a programmable divide-by-N dual 4-bit binary or BCD down counter constructed with MOS P-channel and N-channel enhancement mode devices(complementary MOS) in a monolithic structure. The MC14569BAL has been designed for use with the MC14568B phase comparator/counter in frequency synthesizers, phase-locked loops, and other frequency division applications requiring low power dissipation and/or high noise immunity.
Parametrics
MC14569BAL maximum ratings: (1)VDD, DC Supply Voltage Range: –0.5 to +18.0 V; (2)Vin, Vout, Input or Output Voltage Range(DC or Transient): –0.5 to VDD + 0.5 V; (3)Iin, Iout, Input or Output Current(DC or Transient) per Pin: ±10 mA; (4)PD, Power Dissipation,per Package: 500 mW; (5)TA, Ambient Temperature Range: –55 to +125 ℃; (6)Tstg, Storage Temperature Range: –65 to +150 ℃; (7)TL, Lead Temperature(8–Second Soldering): 260 ℃.
Features
MC14569BAL features: (1)Each 4–Bit Counter Can Divide Independently in BCD or Binary Mode; (2)Can be Cascaded With MC14526B for Frequency Synthesizer Applications; (3)All Outputs are Buffered; (4)Schmitt Triggered Clock Conditioning.

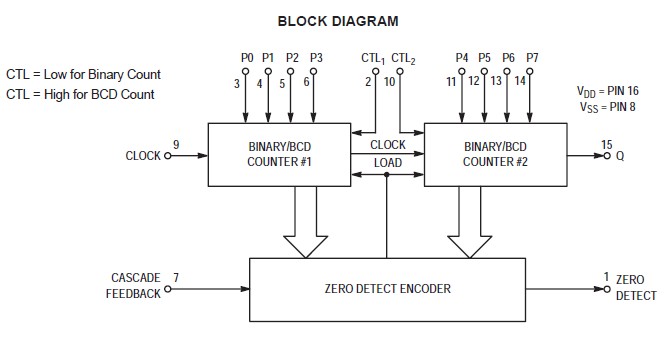

Diagrams
 |
