AD210BN

Precision, Wide Bandwidth, 3-Port Isolation Amplifier, DIP, Low Gain Drift 625 ppm/8C

Rated 5 Rating 5 | reviews | Write a review

Price:: US $5.50~8.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $5.50~8.50

PartNumber:: AD210BN

Brand:: Analog Devices - ADI | Pack: DIP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Andy Wu's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-11-02

From Other Seller

Part Number:AD210BN
US $5.50 - 8.50
74AHC2G08VS SOP-8

US $2.00 - 2.00 / Piece
(0) Remove
DAD1000

US $2.50 - 3.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

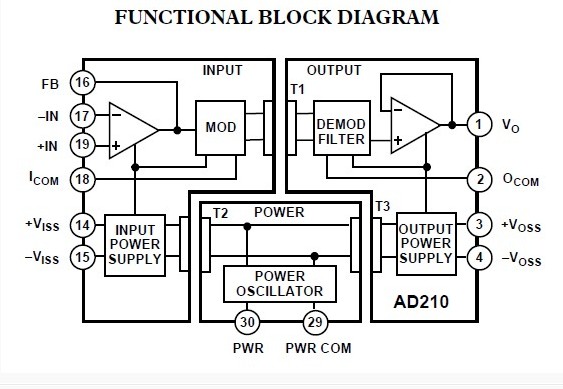

The AD210BN is the latest member of a new generation of low cost, high performance isolation amplifiers. This three-port, wide bandwidth isolation amplifier is manufactured with surface-mounted components in an automated assembly process. The AD210BN combines design expertise with state-of-the-art manufacturing technology to produce an extremely compact and economical isolator whose performance and abundant user features far exceed those offered in more expensive devices. The AD210BN provides a complete isolation function with both signal and power isolation supplied via transformer coupling internal to the module. The AD210BN functionally complete design, powered by a single +15 V supply, eliminates the need for an external DC/DC converter, unlike optically coupled isolation devices. The true three-port design structure permits the AD210BN to be applied as an input or output isolator, in single or multichannel applications. The AD210BN will maintain its high performance under sustained common-mode stress.

Parametrics

AD210BN maximum ratings: (1)Number of Pins: 30; (2)Isolation Voltage: 2.50 kV; (3)Slew Rate: 1.00 V/μs; (4)Supply Current: 50.0 mA; (5)Supply Voltage (DC): 5.00 V; (6)Mounting Type: Through Hole; (7)Packaging: Tube; (8)RoHS: Non-Compliant.
