Product Summary

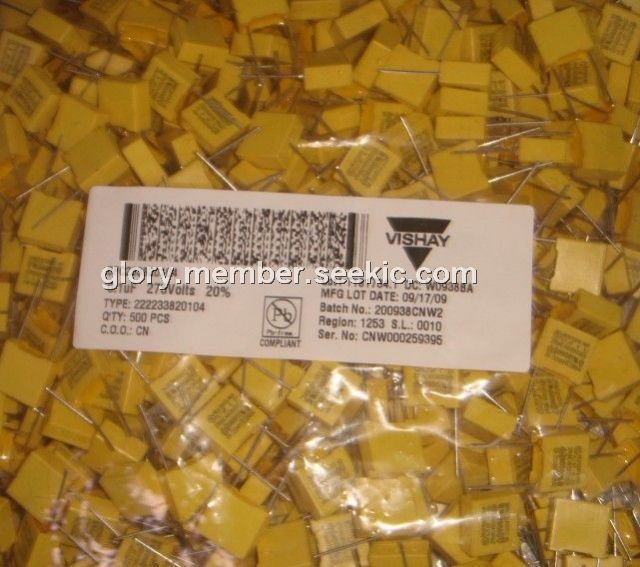

The 222233820104 is the interference suppression film capacitor, which is used for X2 electromagnetic interference suppression.

Parametrics

222233820104 reference data: (1)Rated voltage pulse slope (dU/dt)R at 385 V (DC): 100 V/μs; (2)R between leads, for C ≤ 0.33 μF at 100 V; 1 minute: >15000 MΩ; (3)R between leads and case; 100 V; 1 minute: >30000 MΩ; (4)Withstanding (DC) voltage (cut off current 10 mA); rise time 100 V/s: 2200 V; 1 minute; (5)Withstanding (AC) voltage between leads and case: 2050 V; 1 minute.

Features

222233820104 features: (1)7.5 to 27.5 mm lead pitch; (2)Supplied loose in box, taped on ammopack or reel; (3)Consists of a low-inductive wound cell of metallized polypropylene film, potted in a flame-retardant case.

Diagrams

222233820104 outline
